Royal Black DL301 285/75R24.5 H/16PLY

Commercial Truck - Drive
Commercial Drive

Rims Not Included

easy test score

7.7 Great

Availability

In Stock

Per Tire:

$271.26

$123.60

Estimated Delivery

Shipping

Total

See full specs

Category

Commercial Truck - Drive | Commercial Drive

93000469

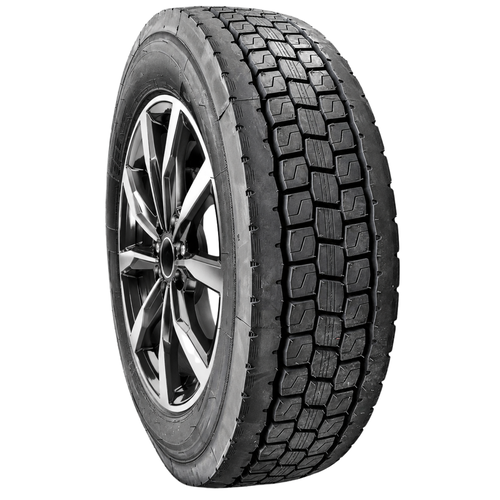

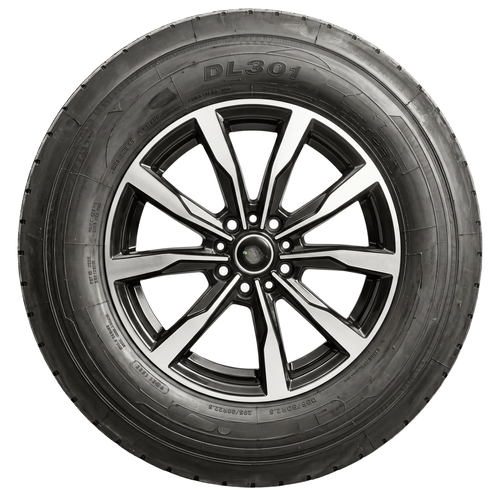

The Royal Black DL301 285/75R24.5 H/16PLY Tires is a Commercial Truck - Drive tire. Manufacturer part number: 93000469.

The Royal Black DL301 is a drive-position commercial truck tire for tractors and heavy straight trucks on 22.5-inch and 24.5-inch wheels. Royal Black is a brand of Shandong Haohua Tire Co.

Sizes cover both conventional and low-profile fitments: 11R22.5, 11R24.5, 295/75R22.5 and 285/75R24.5. The 295/75R22.5 is load range H (16-ply rating) and carries 6,610 lbs per tire single and 6,005 lbs per tire in dual (load index 146/143), with an M speed rating (81 mph). The 11R22.5 in load range G (14-ply rating) carries 6,175 lbs single and 5,840 lbs dual (144/142). The dual figure is lower because the inside and outside tires share the load unevenly over crowned roads.

For fleet buyers the question is cost per mile. That comes down to correct inflation, matched duals and pulling the tire while the casing is still sound.

Best-suited for: Class 8 tractors, dump trucks, refuse trucks and heavy straight trucks on 22.5-inch or 24.5-inch drive wheels.

Tire Best Features:

A drive-axle design for tractors and heavy straight trucks.
Load range H in the 295/75R22.5 carries 6,610 lbs per tire single.
Load range G and H options to match axle ratings.
An M speed rating (81 mph) on the 295/75R22.5.
Conventional and low-profile sizes in 22.5-inch and 24.5-inch.

For over 2 decades, Tires Easy has served the online tire community. With over 7 million tires sold, 18K+ 5-star reviews, and tens of thousands of tires just one click away, there’s a reason why millions of customers choose Tires Easy as their online tire destination.

7+ Million Tires

Sold Online

Over 18K 5-star

Customer Reviews

20+ Years

In Business

Buy now, pay later

Convenient financing options

Low Prices

Special offers on brand name tires

45 day returns

Buy tires without the risk

About the Manufacturer:

Royal Black is a tire brand produced by Shandong Haohua Tire Co., Ltd., a Chinese tire manufacturer based in Shandong Province. The brand focuses on passenger, SUV, light truck, winter, and commercial truck tires, offering a wide range of replacement tire options for everyday drivers and commercial users. With more than 30 tread patterns and 400 sizes, Royal Black is designed to deliver dependable performance, practical value, and broad fitment coverage across multiple vehicle types.

Chat

Start chat

Call

(866) 335-8473

We can help! Our trained experts have years of tire fitment experience and are available to answer questions.

Specifications

Specs

Value

Description

Load Index

149/146

The load index (LI) is a 2- or 3-digit number that correlates to the maximum amount of weight the tire can carry. For example, a tire with a load index of 87 indicates that the tire can carry a maximum load of 1,201 lbs. In this particularly example, 4 tires (each with a load index of 87) can carry a maximum of 4,804 lbs. Refer to your vehicle owner's manual for the recommended minimum load index.

Speed Rating

Speed rating (SR) indicates the maximum speed the tire can achieve. Higher speed ratings are typically associated with better handling capabilities. Refer to your vehicle owner's manual for the recommended minimum speed rating.

Load Range/Ply Rating

H/16PLY

Ply rating, more commonly referred to as load range, represents the strength and durability of the tire. Higher ratings may indicate your tires can handle heavier loads.

Tread Depth

34.0

The amount of tread on the tire. Once the tire is worn to 2/32nds, it is considered fully used and should be replaced at that time. Most tires will have tire indicators in the grooves of the tire to help you determine when the tires are worn down to 2/32nds.

Tread Design

Nondirectional

The pattern of the grooves, lugs, voids, and sipes on a tire's surface. This design affects the tire's traction, handling, and noise characteristics. Common types include symmetrical (uniform pattern across the tire), asymmetrical (different patterns on the inside and outside for varied road conditions), and directional (designed to rotate in one direction for improved wet traction and hydroplaning resistance).

Measured Rim Width

8.2

The recommended wheel width as recommended by the tire manufacturer to get the best wear us performance for this tire.

Section Width

11.0

The measurement from sidewall to sidewall.

Manufacturer Part Number

93000469

Manufacturer part number (sku)

Size Details

Size	Load Index/ Speed index	UTQG	Load Range/Ply Rating	Overall Diameter	Section Width	Rim Width Min	Rim Width Max	Rim Width Meas	Tread Depth (in)	Max Single Air Pressure (PSI)	Max Single Load (lbs)	Max Dual Air Pressure (PSI)	Max Dual Load (lbs)	MFG #
11R22.5	144/142M	-	G/14PLY	-	10.9	-	-	8.2	34.0	-	-	-	-	93000026
11R22.5	146/143M	-	H/16PLY	-	10.9	-	-	8.2	34.0	-	-	-	-	93000022
11R24.5	149/146M	-	H/16PLY	-	10.9	-	-	8.2	34.0	-	-	-	-	93000054
285/75R24.5	144/141M	-	G/14PLY	-	11.0	-	-	8.2	34.0	-	-	-	-	93000074
285/75R24.5	149/146M	-	H/16PLY	-	11.0	-	-	8.2	34.0	-	-	-	-	93000469
295/75R22.5	146/143M	-	H/16PLY	-	11.4	-	-	9.0	34.0	-	-	-	-	93000110
