Toyo M 506Z 11R22.5 H/16PLY

Commercial Truck - Drive
Commercial Drive

Rims Not Included

easy test score

9.6 Superb

Availability

In Stock

Per Tire:

$888.16

$117.56

Estimated Delivery

Shipping

Total

See full specs

Category

Commercial Truck - Drive | Commercial Drive

549280

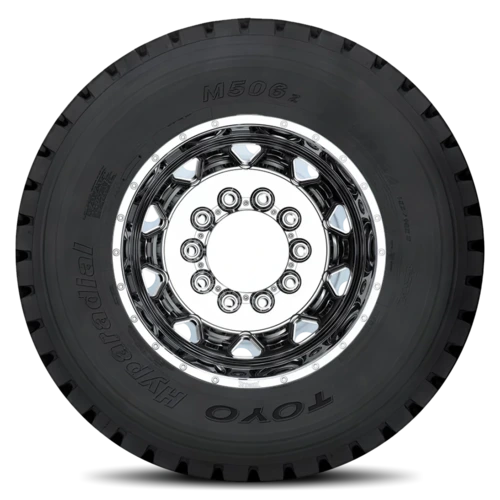

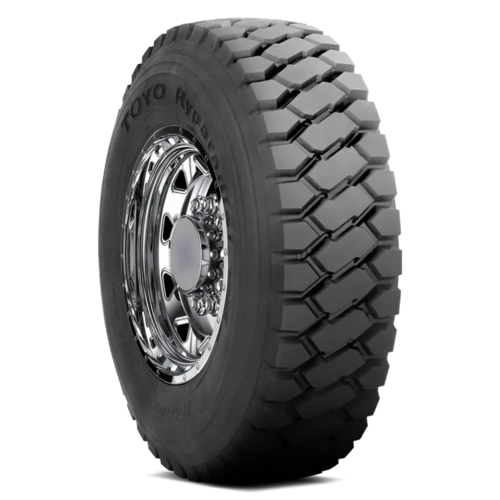

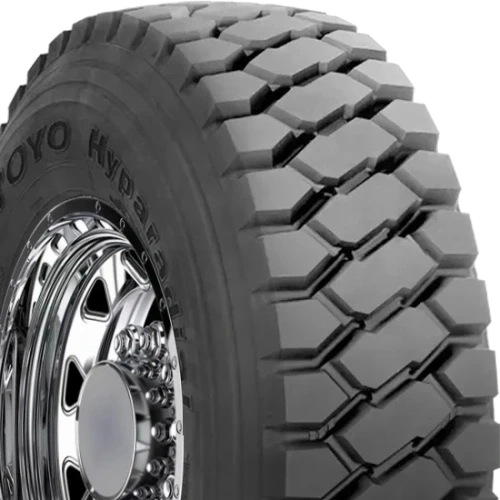

The Toyo M 506Z 11R22.5 H/16PLY Tires is a Commercial Truck - Drive tire. Manufacturer part number: 549280. The Toyo M506Z is a heavy-duty urban on and off-rad drive tire for severe terrain conditions. This tire offers exceptional durability, extra deep tread and extended casing life making it ideal for construction, logging and refuse vehicles. The enhanced retreadability and casing durability comes from the high-elongation top belt, which protects casing integrity. The stone ejector grooves also help maintain casing integrity by minimizing stone retention coupled with the four steel belt construction. The extra deep tread offers traction in tough off-road conditions while the high natural rubber compound gives this tire cut and chip resistance for excellent performance and safety.

For over 2 decades, Tires Easy has served the online tire community. With over 7 million tires sold, 18K+ 5-star reviews, and tens of thousands of tires just one click away, there’s a reason why millions of customers choose Tires Easy as their online tire destination.

7+ Million Tires

Sold Online

Over 18K 5-star

Customer Reviews

20+ Years

In Business

Buy now, pay later

Convenient financing options

Low Prices

Special offers on brand name tires

45 day returns

Buy tires without the risk

About the Manufacturer:

Toyo Tires, founded in 1945 in Japan, is a global leader in tire technology and innovation, renowned for its high-performance and off-road tires. Operating in over 100 countries and regions, Toyo Tires is trusted for its cutting-edge design, quality, and performance, offering exceptional grip, durability, and driving comfort for passenger cars, SUVs, CUVs, light trucks, and commercial trucks.

Chat

Start chat

Call

(866) 335-8473

We can help! Our trained experts have years of tire fitment experience and are available to answer questions.

Specifications

Specs

Value

Description

Sidewall

Not Available

Describes the sidewall appearance. Examples: BSW= Black Side Wall, WSW = White Side Wall, OWL = Outlined White Letters.

Load Index

148/145

The load index (LI) is a 2- or 3-digit number that correlates to the maximum amount of weight the tire can carry. For example, a tire with a load index of 87 indicates that the tire can carry a maximum load of 1,201 lbs. In this particularly example, 4 tires (each with a load index of 87) can carry a maximum of 4,804 lbs. Refer to your vehicle owner's manual for the recommended minimum load index.

Speed Rating

Not Available

Speed rating (SR) indicates the maximum speed the tire can achieve. Higher speed ratings are typically associated with better handling capabilities. Refer to your vehicle owner's manual for the recommended minimum speed rating.

Load Range/Ply Rating

H/16PLY

Ply rating, more commonly referred to as load range, represents the strength and durability of the tire. Higher ratings may indicate your tires can handle heavier loads.

UTQG

Not Available

To help consumers evaluate their tires, the U.S. National Highway Traffic Safety Administration (NHTSA) created the Uniform Tire Quality Grading System (UTQG). The UTQG rates tires are rated on their tread-wear, traction performance, and temperature resistance. The grade for each of these can be found on the sidewall of your tire (except for winter tires and certain light truck tires).

Max Single Load(lbs)

6610

The maximum load this tire will support. Remember to multiply this number by the number of tires installed on your vehicle to get the maximum carrying capacity. This number is directly related to the Load Index.

Max Single Air Pressure(PSI)

120

The maximum air pressure this tire will support. This does not represent the amount of air pressure your tires should have at all times. Consult with your owner's manual to determine the best air pressure you should use for your vehicle.

Tread Depth

30.0

The amount of tread on the tire. Once the tire is worn to 2/32nds, it is considered fully used and should be replaced at that time. Most tires will have tire indicators in the grooves of the tire to help you determine when the tires are worn down to 2/32nds.

Tread Design

Nondirectional

The pattern of the grooves, lugs, voids, and sipes on a tire's surface. This design affects the tire's traction, handling, and noise characteristics. Common types include symmetrical (uniform pattern across the tire), asymmetrical (different patterns on the inside and outside for varied road conditions), and directional (designed to rotate in one direction for improved wet traction and hydroplaning resistance).

Rim Width Range

8.25-8.25

The approved wheel rim width range this tire will support.

Measured Rim Width

8.25

The recommended wheel width as recommended by the tire manufacturer to get the best wear us performance for this tire.

Section Width

11.1

The measurement from sidewall to sidewall.

Tread Width

Not Available

The measurement from one side of the tread to the other side of the tread.

Overall Diameter

42.2

The height of the tire when fully inflated.

Manufacturer Part Number

549280

Manufacturer part number (sku)

Size Details

Size	Load Index/ Speed index	UTQG	Load Range/Ply Rating	Overall Diameter	Section Width	Rim Width Min	Rim Width Max	Rim Width Meas	Tread Depth (in)	Max Single Air Pressure (PSI)	Max Single Load (lbs)	Max Dual Air Pressure (PSI)	Max Dual Load (lbs)	MFG #
11R22.5	148/145	-	H/16PLY	42.2	11.1	8.25	8.25	8.25	30.0	120	6610	120	6005	549280
11R24.5	149/146	-	H/16PLY	44.3	11.1	8.25	8.25	8.25	30.0	120	7160	120	6610	549300
